Parse
Select informative keyframes, associate instances across views, and construct a verified scene graph with reference views, masks, partial point clouds, 3D boxes, and referring cues.
Overview

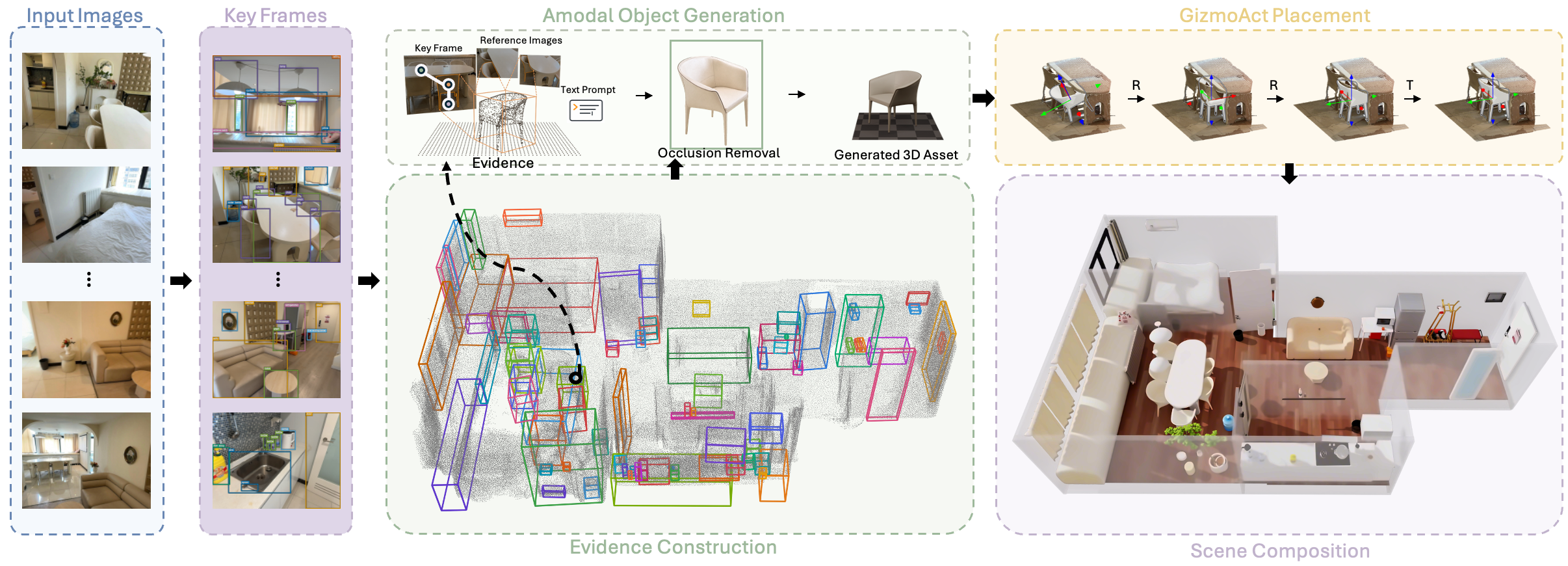

Lucida reconstructs a real indoor scene as complete, editable object assets arranged as observed. It follows a parse, generate, and place pipeline, reserving precise alignment for the final closed-loop stage.
Method
Each stage consumes evidence available in a cluttered real capture. The final stage uses observation feedback to close the loop instead of assuming perfect upstream geometry.
Generate
Use each evidence bundle to synthesize an occlusion-free object image and lift it into a complete, editable 3D asset.
Place
Initialize the asset coarsely, then let GizmoAct issue executable pose edits until the rendered asset aligns with the captured scene.
Demo
Lucida represents the reconstructed scene as a collection of complete object assets. Each object remains a separate, editable mesh ready for simulation.
Could not open the interactive scene.
Open the 3D scene in a new tab
GizmoAct

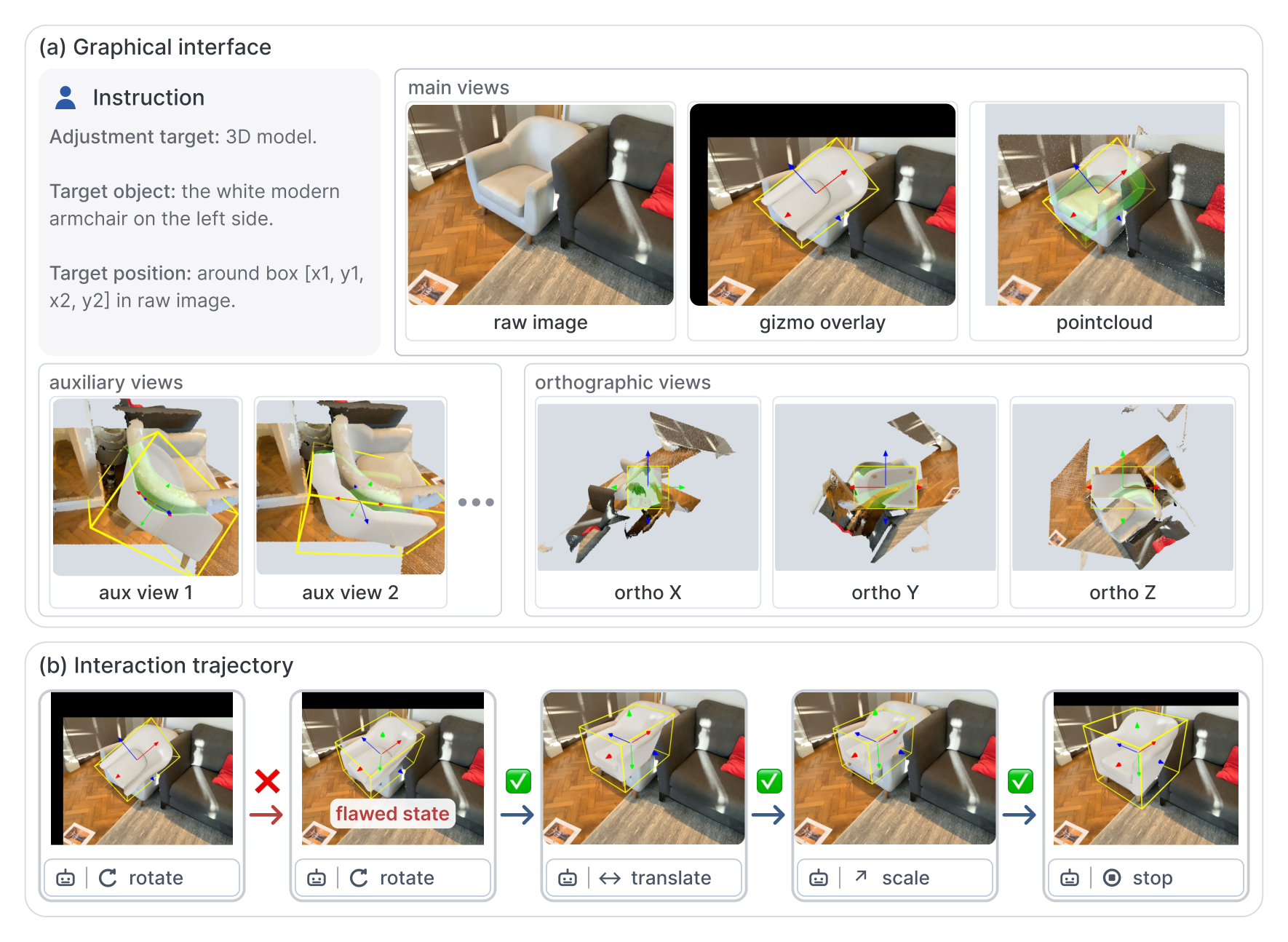

A VLM operates a 3D editor in a closed loop. At each turn, it receives a set of rendered observations, issues one executable edit in the object's local frame, and decides when to stop.
Examples by initialization difficulty
Easy, medium, and hard cases show how the same policy handles progressively larger pose residuals.
Robustness to pose initialization
For each case, the same policy starts from pose initializations produced by Boxer, Any6D*, and SAM 3D.
* Any6D-style depth-and-mask initialization only; FoundationPose prediction and refinement are excluded. All variants use the same GizmoAct policy, with up to four views and 12 refinement steps.
Quantitative results
Lucida improves scene-level 3D object detection, object pose estimation, and complete scene reconstruction across R2S, CA-1M, and Aria Digital Twin.
Scene-level 3D object detection
Lucida produces a single deduplicated inventory of object instances with oriented 3D boxes before asset generation.
Click to collapse
Scene-level detection accuracy
Mean class-agnostic AP over 3D IoU thresholds from 0.05 to 0.50. Higher is better.
All objects
Filtered objects
All objects
Filtered objects
all and key indicate which frames are used for the initial object prompts. The filtered protocol evaluates objects recovered by at least one method in the comparison.
Object pose estimation
GizmoAct improves strict surface alignment and oriented-box overlap on R2S-Object, CA-1M, and Aria Digital Twin.
Click to collapse
Scene reconstruction
Scene reconstruction on R2S-Scene. Scene CD uses squared Euclidean distances in metric scene coordinates; object-level metrics are computed after per-object normalization.
Click to collapse
Qualitative results
GizmoAct pose refinement
The ground-truth asset pose is rendered in blue. Mutual occlusion between the prediction and the blue reference reveals any residual alignment error.
Click to collapse
Select a dataset above, then click the figure to inspect it at full resolution.
Scene reconstruction
Compared with single-view scene reconstruction, Lucida better preserves object identity, scale, orientation, and overall arrangement.
Click to collapse
Acknowledgements
We thank Wei Li, Heng Dong, and Qifeng Zhang for providing the pretrained VLM and for their help with model training. We thank Lihao Liu, Baifeng Xie, and Yiming Qiao for their help with simulation data, evaluation, and physical-plausibility post-processing.
